Suitable for welding of structural steel, with tensile strength up to 540N/mm2 Butt and fillet welding of automobile bodies, bridges, ships, containers, railway rolling stock, bogies, storage tanks and general structural fabrications.
B.H.E.L.

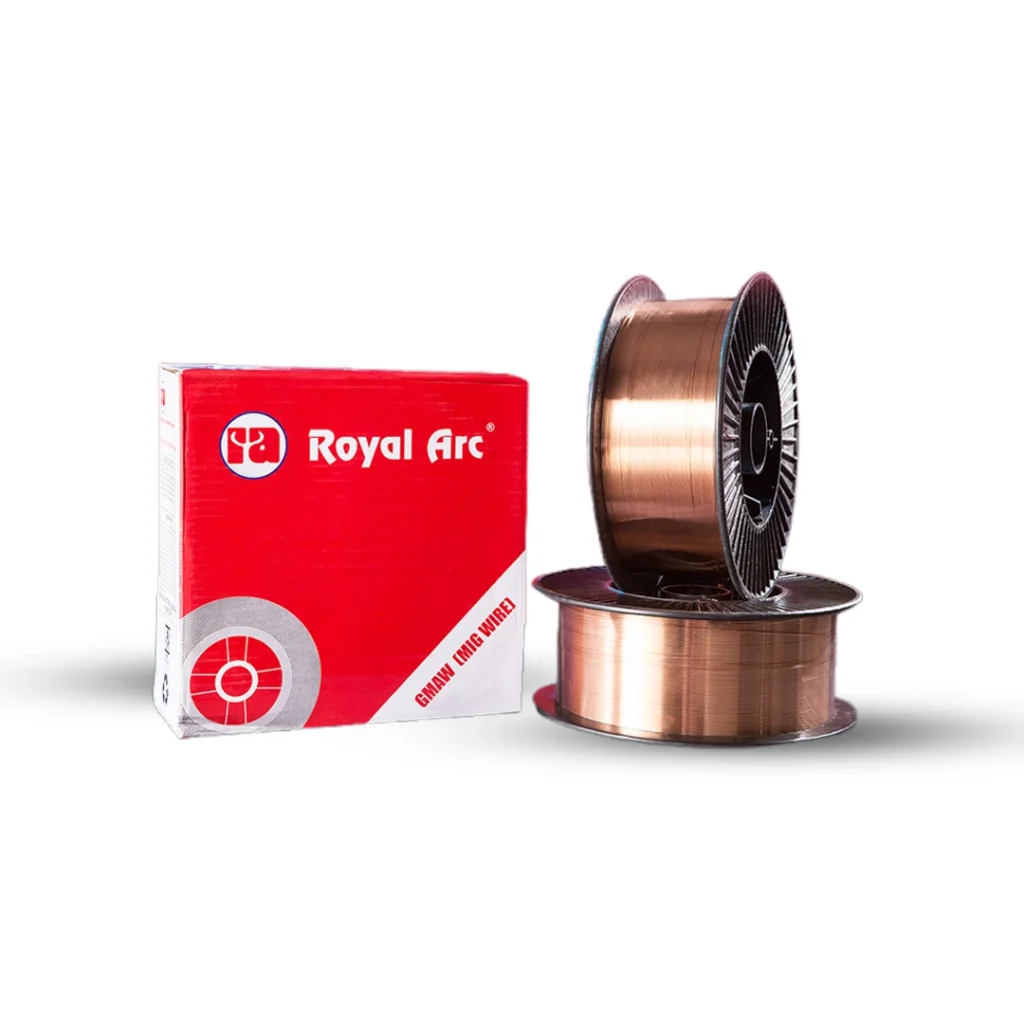

Standard plastic spool of 270 mm dia and weight 15kg sealed in an air tight polythene bag and then packed in a corrugated box. Silica gel drying agent provided inside to prevent moisture pick up and increase shelf life. Shrink packing can also be given on
customer requirement. We can also manufacture wire according to customer requirements.
| C% | Mn% | Si% | S% | P% | Cr% | Ni% | V% | Mo% | Cu% |
|---|---|---|---|---|---|---|---|---|---|
| 0.06- 0.15 | 1.40–1.85 | 0.80–1.15 | 0.035 Max | 0.025 Max | 0.15 Max | 0.15 Max | 0.03 Max | 0.15 Max | 0.50 Max |
| U.T.S.(N/mm²) | Y.S.(N/mm²) | ELONGATION ( L = 4d ) % | IMPACT ( CVN) AT – 30° C ( J ) |
|---|---|---|---|
| 490 | 400 | 22 | 27 |
| SIZE ( mm ) | Current (Amps) | In Amps | In Volts | GAS FLOW L/M |
|---|---|---|---|---|
| 0.8 | DC (+) | 50 – 180 | 18 – 25 | 10 – 25 |
| 1.0 | 80 – 200 | 20 – 26 | 12 – 20 | |
| 1.2 | 130 – 300 | 22 – 36 | 15 – 25 | |
| 1.6 | 200 – 400 | 24 – 38 | 16 – 28 |
