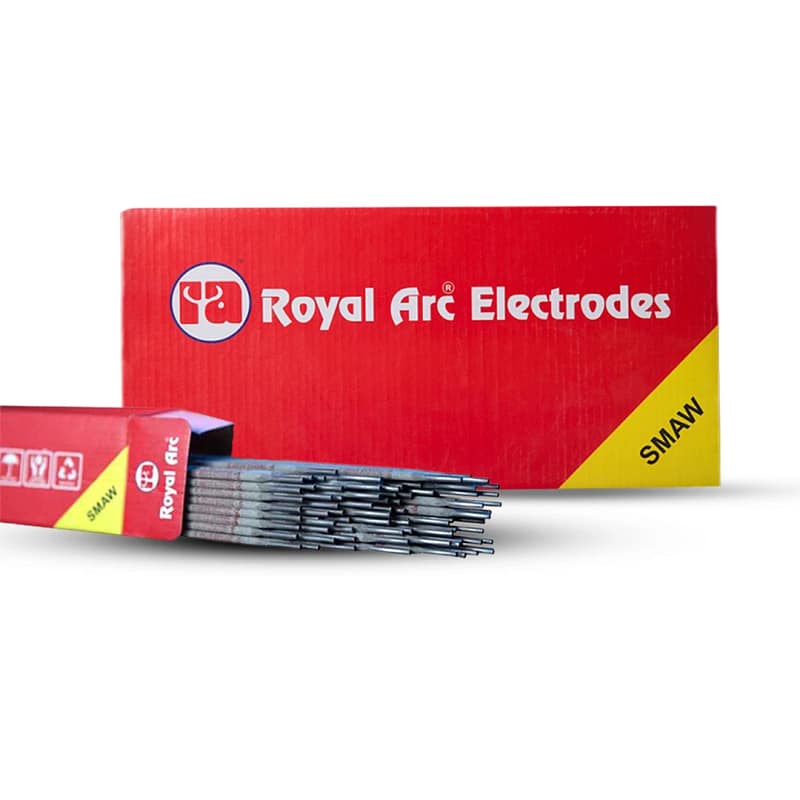

Welding Electrode

ROYAL – S (E 6013)

AWS: A 5.1, E 6013

Applications

Ship Building Storage Tanks & Boilers Pressure Pipes Railway Coaches

Welding Positions

1G 2F 3G 4G

Approvals

I.R.S, L.R.S, I.B.R, B.V, D.N.V, P.D.I.L, B.I.S [ISI], TOYO[TEIL], THERMAX,L & T A.B.S, K.N.P.C., K.P.G. I.L,I.O.C.L,M.R.P.L, TPL
UHDE INDIA LTD., M.M.D., B.H.P.V., N P C I L, RDSO CLASS A2,

Notes On Usage

1) In case of varticle download welding,manipulate the electrode,keeping its tip in contanct with
2) Dry the electrode at 70-100 °C for 30-60 min.before use.

Chemical Composition Of Weld Metal

C%Mn%Si%S%P%
0.12 Max0.65 Max0.40Max0.040 Max0.040 Max

Mechanical Properties Of Weld Metal

U.T.S.(N/mm²)Y.S.(N/mm²)ELONGATION ( L = 5d ) %IMPACT ( CVN ) AT 0° CRADIOGRPHY TEST
460 – 560370 – 48022 % Min47 Joules MinSatisfactory as per IIW blue std

Packing and Welding Current

SIZE ( mm )KG PER
PACKET
KG PER
CARTON
Current (Amps)In Amps
2.50 x 350520114460-90AC/DC (-)
3.15 x 350/4505201144100-140
4.00 x 350/4505201144140-190
5.00 x 350/4505201144190-250
