ROYAL 70 S – 3

AWS : A 5.1 8 ER 70S-3

Description

Royal – 70S-3 wire is a copper coated solid wire for Co2 welding for general engineering and structural application. It gives spatter free welding with Co2 gas and Ar+Co2 gas mixtures. The weld de- posit is free from porosities with smooth and uniform weld bead.

Packing Specification

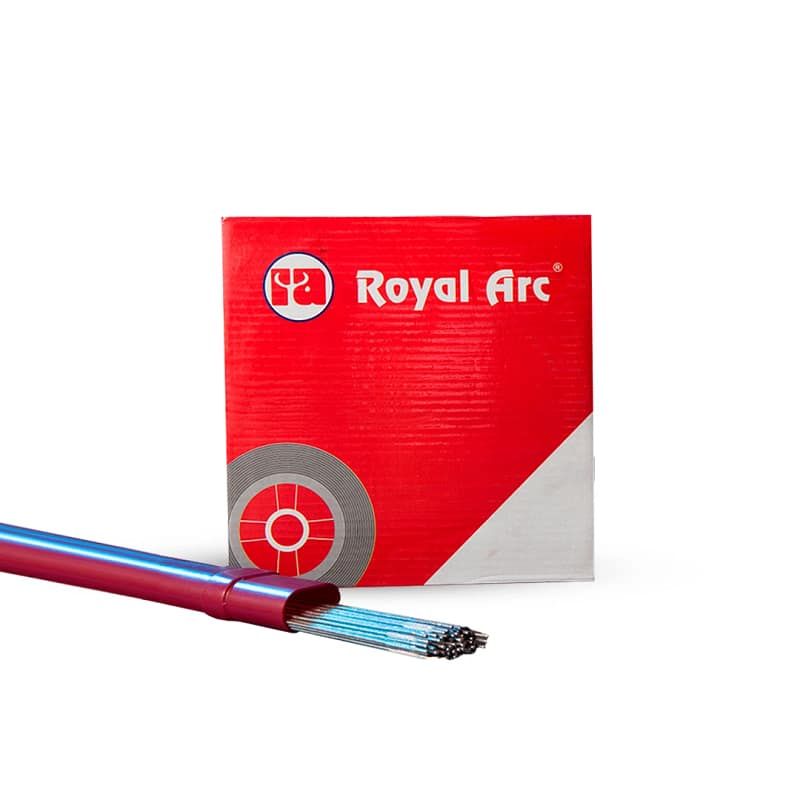

Each Packets content 5 kg of Wire Rods having length 1000mm.

Procedure

Suitable for welding of structural steel with tensile strength up to 540N/mm2, welding of automobile bodies, bridges ship containers rai lway rol l ing stock, bogies, storage tan k s and general structural fabrication works.

WELDING CURRENT D.C. (+) :-

WIRECURRENT AmpsVOLTSGAS FLOW L/M
1.60 x 1000 mm150 – 20022 – 2610 – 25
2.00 x 1000 mm200 – 25024 – 3212 – 20
2.40 x 1000 mm250 – 30026 – 3615 – 25
3.20 x 1000 mm250 – 30028 – 3816 – 28

TYPICAL CHEMICAL ANALYSIS OF WIRE (%) :-

C%Mn%Si%S%P%Cr%Ni%Mo%V%Cu%Ti + ZrAl
0.06 – 0.140.90 – 1.300.50 – 0.800.025 Max0.025 Max0.15 Max0.15 Max0.15 Max0.03 Max0.35 Max0.15 Max0.020 Max

TYPICAL MECHANICAL PROPERTIES OF ALL WELD METAL :-

YIELD STRESS (0.2% Offset)420 N/mm2 Min
U.T.S.500 – 640 N/mm2
ELONGATION % (L=5d )20 % Min
CVN IMPACT AT – Minus 40 °C47 Joules Min
